PLCProject stores the content of TIA Portal Projects
V14, V15, V15_1 and V16 to XML-Files in a very fast and flexible way.
As a standing alone application it accesses the TIA projectfiles directly
and does not presuppose any other software to be installed.
All controller devices (S7 300, S7 400, S7 1200 and S7 1500) and HMI devices are exported.
Each device contains groups, blocks, types, symbols, tags and constants, each
block contains declarations and their addresses, code, attributes and comments.
You can install PLCProject under MS Windows and under
Linux. For both operating systems the commandline application 'PLCProject'
is used to create the XML-Files, for example
PLCProject
xmlfile=c:\tiaprojects\projekt1.xml
projectfile=c:\tiaprojects\projekt1\projekt1.ap16

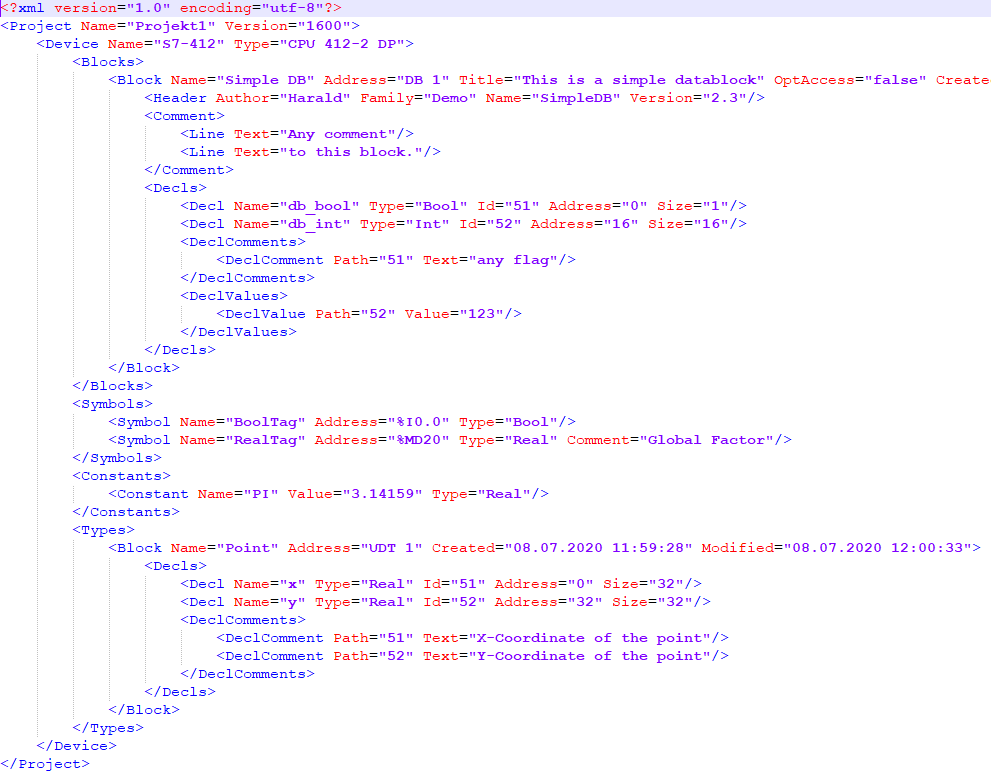

... would convert the whole content of this simple project to XML and
'projekt1.xml' could look like this:

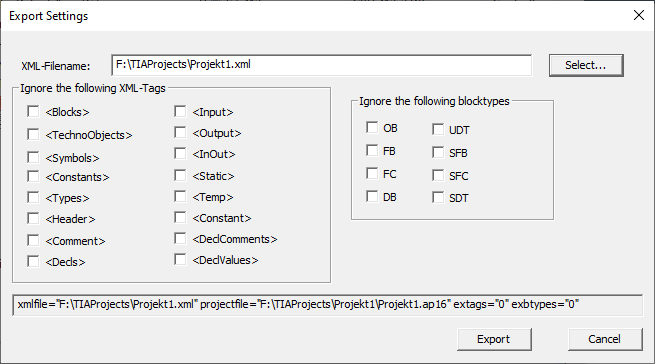

With additional arguments you can filter the kind of data you need by excluding XML-tags and blocktypes. Also multilingual resources are supported.

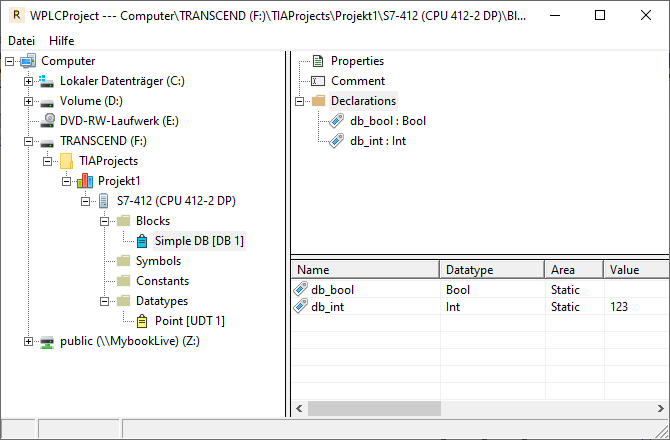

The Windows version also includes a GUI application 'WPLCProject' where you can browse the project and create the XML-Files via Menu and Dialog.
After download and installation you can use a free
trialversion for three weeks. The trialversion has restricted functionality
in the way, that about 20% of all blocks, declarations, symbols, segments
and operands are suppressed in the generated XML-File.
The price for a single license is 399 € plus local taxes.
To order a license just send a mail to
reitmeier@hrsys.de. It is important to copy the trial serialnumber to
your order. You will receive an invoice and after incoming payment we send
you a mail containing the licensed serialnumber and a description how to set
it. No further installation will be necessary.
PLCProject runs under Win10. It is tested for Linux Ubuntu,
but running on other Linux versions should be no problem.
For the Windows 10 installation procedure you need to
trust messages about unknown signatures.
Execute the downloaded installerfile PLCProject.msi.
Click here to Download PLCProject Version 1.3 for Windows 10
For the Linux installation procedure just copy the
downloaded file PLCProject to any suitable location. Set PLCProject to
executable permission, e.g.
chmod +x PLCProject
Click here to Download PLCProject Version 1.3 for Linux
